Existing Technology (PDLC) | |
|---|---|---|
| Principle |  |

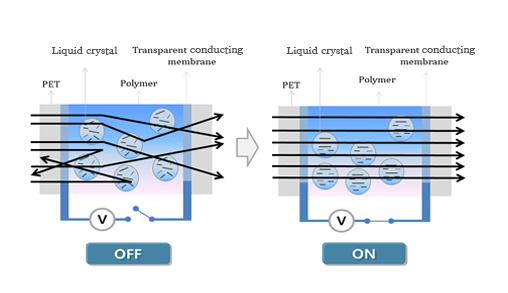

 (polymer dispersed liquid crystal devices) |

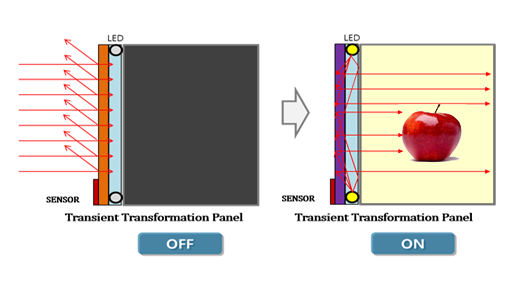

| The first technology to see the inside using the reflectance of LED light without liquid crystal and Transparent electroplastic | Method of injecting a color changing material (liquid crystal) into a conductive transparent substrate and sealing it | |
| Performance |
Glass, PC, Acryl substrate Transmittance 90% ＜ Early black implement possible Simple manufacturing (Easy to install) |
Glass substrate, transparent film Transmittance ＜ 85% Difficult to implement initial black How to make complex |
| Specifications | |
Existing Product (PDLC) | |||
|---|---|---|---|---|---|
| Black | Red | White | Blue | ||
| Normal | Electrode | No | No | ITO | Polymer |
| Thickness (μm) | 1~5mm | 400〈 | 100〈 | ||
| Transparency (On, %) |
90〈 | 85〈 | 85〈 | 80〈 | |
| Transparency (Off, %) |
〈 5 | 〈 7 | 60~65 | 55~60 | |
| Drive Temp. (℃) |
115 (Max 200) | 30~100 | |||
| Storage Temp. (℃) |
Room temp. | Room temp. | |||
| Electrical | Switch driving speed (On, sec) |
〈 0.1 | 0.1 | ||
| Driving Voltage (AC) |
- | 80〈 | 40〈 | ||
| Driving Voltage (DC) |
12V | 80〈 | 40〈 | ||
| Power Consumption (W/sq) |
0.3(1ea) ~ 15 | 4~7 | 4~6 | ||
| Other | UV blocking (off, %) |
99.5 | 99 | ||
| IR blocking (%) |
80〈 | 80〈 | |||
| Electric static blocking | Possible | - | |||
